1 door FLIP UP wall cabinet (INCLUDES AVENTOS HK-XS STAY-UP ARM/ARMS)

Alternative Views:

Retail Price $516.95

Sale Price + Options: $286.95

Product Code: W1DFLIPUPAVENTOSHKXS

Cabinet Size (wall cabinets)

WIDTH*:

HEIGHT*:

DEPTH*:

Doors and Drawer Fronts

Hinge Side*:

Click to view another Door and Drawer Front Style

Door and Drawer Front Style*:

Click to view another Door and Drawer Front Wood Type

Door and Drawer Front Wood Type*:

Door/Drawer Front Prefinishing*:

Click to view another Glass Door Prep

Glass Door Prep*:

Advanced Options

Disclaimer*:

I have read the "notes" and agree to all conditions

Notes (room ID or custom tag):

Qty:

Description

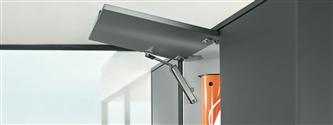

One door flip up wall cabinet. Single door, no adjustable shelves inside. Door will flip up and stay in the "up" position. This cabinet includes Blum Aventos HK-XS stay-up lift arm/arms and all needed plates and brackets.

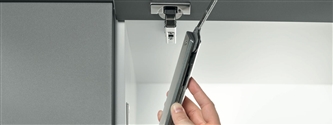

DISCLAIMER: The door will come with hinges cups like normal (you will attach the door to the case like normal using regular hinges. Customer will be required to drill two holes on the backside of the door to accept the door side lift up arm plate on-site. *We do not drill this set of holes as they are outside of our jig standards, sorry about that. :(
*Note that we will include a paper sheet with holes specs and location. It's rather easy.
*Note that our system will determine the power factor and quantity of the lift up arms. This is done by a calculation built into our system based on the estimated size and weight of the door. Be aware, you may have one or two lift up arms shipped with your order (we do not know the qty and power factor until the width and height are determined). Note that we drill both sides of the cabinet for mounting holes even though the cabinet may only require a single lift up arm. Additional holes on the unused interior side are not covered under warranty and will not quality for warranty replacement (i.e. you may have a side with some additional unneeded holes drilled, we will not remake those parts so they have no holes). *Try and keep the WIDTH under 36" to avoid warping. Try to keep the HEIGHT below 18" to ensure proper usage and operation.

Features
Custom Cabinets - Made In Oregon using globally sourced materials

Standard Cabinets Construction (the interior is not visible once doors/drawer are closed)

All cabinets are shipped ready to assemble (i.e. flat packed)
Full overlay (flush look) frame-less construction (European style, confirmat screw assembly, no glue or additional tools needed, just a screwdriver)
Full access (maximum storage capacity with no wasted space)

Materials
Doors are custom made and hand sanded in Oregon using high quality hardwoods.
Cabinet Cases are made in Oregon using globally sourced 3/4" thick birch plywood. Veneer is an ultra durable, baked-on UV clear finished real wood Birch veneer. Plywood core is a 3/4" thick core (11 ply, 9 ply, or 7ply, depending on availability).
Drawer Boxes are made in Oregon using globally sourced 5/8" solid Rubberwood finger joint lumber (clearcoat finished in a matte sheen, shipped fully assembled and notched for under-mount drawer slides, *dovetailed drawer box joints are left raw wood and will not have a finish applied).

Hardware
Hinges are made in North Carolina, Blum "Clip Top" Blumotion (soft closing, self closing)
Drawer slides are Globally sourced, Under-mount, Soft-Close, full Extension, 75lbs capacity
All needed hardware for assembly is included with your order (includes assembly screws, shelf pins, hinge plates, etc)
*Knobs and Pulls are not included with any of our cabinets

Notes
*Construction holes will be visible on the sides, top, and bottom of the cabinet once assembled.
**Finished end panels (ordered separately) should be ordered to finish off the exposed cabinet sides after installation.
